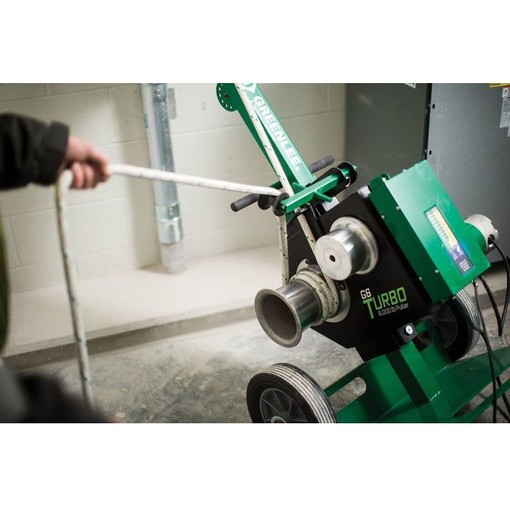

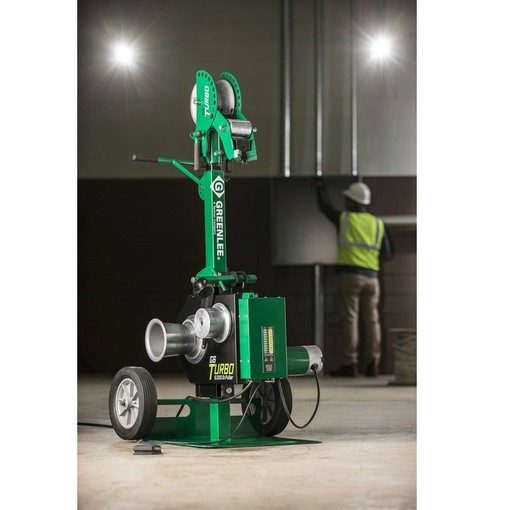

GREENLEE G6 TURBO 6000 LB CABLE PULLER

INCLUDES:
• (1) Force Gauge
• (1) Foot switch

FEATURES:
• Up to 60% Faster compared to competition*
• Setup in less than 60 seconds
• No loose pieces, allowing quick changeover for easy transport
• No adapter needed - easily clamp conduit in seconds
• Dual capstans increase pulling speeds and maximize efficiency
• Two speed motor specially designed for 6,000 lb loads
• Circuit breaker monitor for safe auto shutoff and extend motor life
• Force indicator prevents damage to puller
• Built-in dolly for fast and easy transport
• Ergonomic design eliminates heavy lifting during setup
• Right-angle sheave allows the operator to stand out of the direct line of force

SPECIFICATIONS:
• Application: Cable Puller
• Pulling Rope: 3/4 IN (19.100 MM) Double-Braided Composite, • • Rated At 26000 LB (115.600 KN)
• Drive Motor: 120 VAC, 50/60 Hz, 12 amps
• No Load Main Capstan Speed: High Speed 28 ft/min (8.53 m/min), Low Speed 11 ft/min (3.35 m/min)
• No Load Secondary Capstan Speed: High Speed 90 ft/min (27.43 m/min), Low Speed 35 ft/min (10.70 m/min)
• Pulling Force: 4000.000 LB (17.800 KN) Continuous, 5000.000 LB (22.200 KN) Intermittent, 6000.000 LB (26.700 KN) Momentary
• Standard Boom Extension: 7.50 FT (2.29.m)
• Weight: 252 lbs (114 kg)
